Enable TCP/IP on SQL Server 2005 Express Edition

Posted by: andreiash in Database, Oracle

On SQL Server 2005 Express Edition (I don’t know how’s on full version, never had a license for it) the default connection model is through named pipes and TCP/IP is disabled.

If you want to connect to it from Oracle SQL Developer using jTDS driver it will throw a generic connection failure, as he is trying just TCP/IP. The error looks like this:
2009-05-31_1408

In ordrer to enable TCP/IP you have to do a few steps:

1. From SQL Server Configuration Manager, go and expand “Network Configuration”, choose “Protocols for SQL Server Express” and enable TCP/IP
2009-05-31_1412

2. Open TCP/IP properties page, go to the second tab “IP Addresses” and in the last field called “IPAll – TCP Port” enter your port number. You might want to choose 1433.
2009-05-31_14092

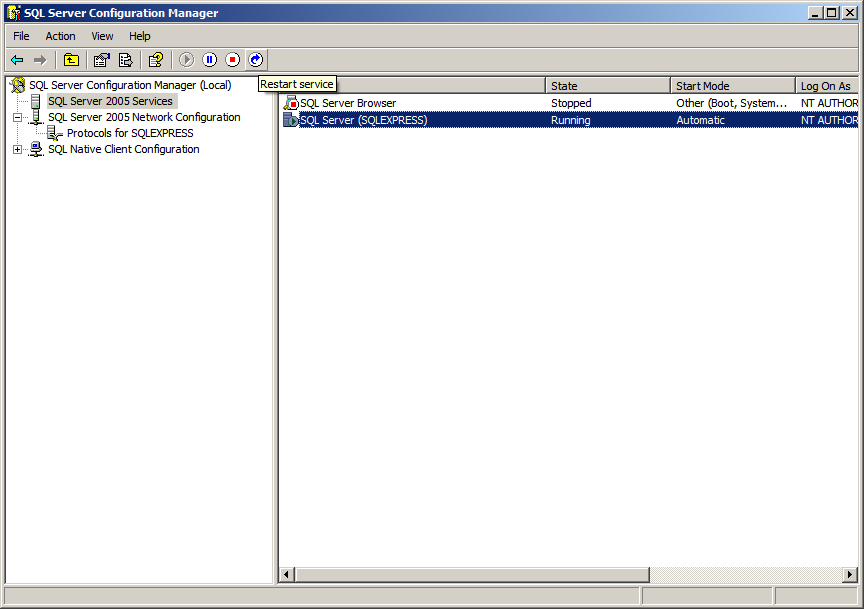

3. Restart SQL Server Express service.
2009-05-31_1410

4. Try again from SQL Developer. This time will work!
2009-05-31_1413

Good luck,
Andrei
